ASP-IR. Scanning IR Spectrometer

● IR spectral measurements as far as 3.5 um
● Small footprint
● Down to 0.5 nm resolution
● USB connection
● Cost-effective
● Free-space and fiber-coupled SMA input

    The ASP-IR boasts a scanning mechanism that allows measurements in IR range without using an expensive CCD array. This makes the spectrometer very attractive in terms of price in the market of IR spectrometers. The ASP-IR has impressive characteristics that provide precise laser emission analysis along the whole registered range with resolution of down to 0.5 nm. The unit also features a trigger signal input for convenient pulsed laser measurement.

    The spectrometer has a special fiber input, allowing measurement of either free-space or fiber signals without any realignment.



Applications:

Biological Imaging

Laser Systems Design, Integration and Amplification

Ultrafast Laser Diagnostics, Accessories and Components

  • Laser Wavelength Control

  • Spectral Analysis of Various Light Sources

  • NIR and MIR Spectral Analysis

  • Laser Emission Analysis

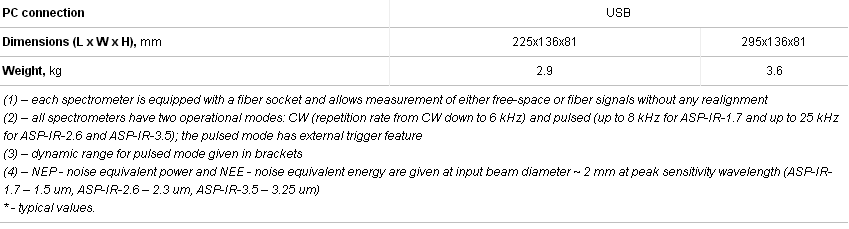

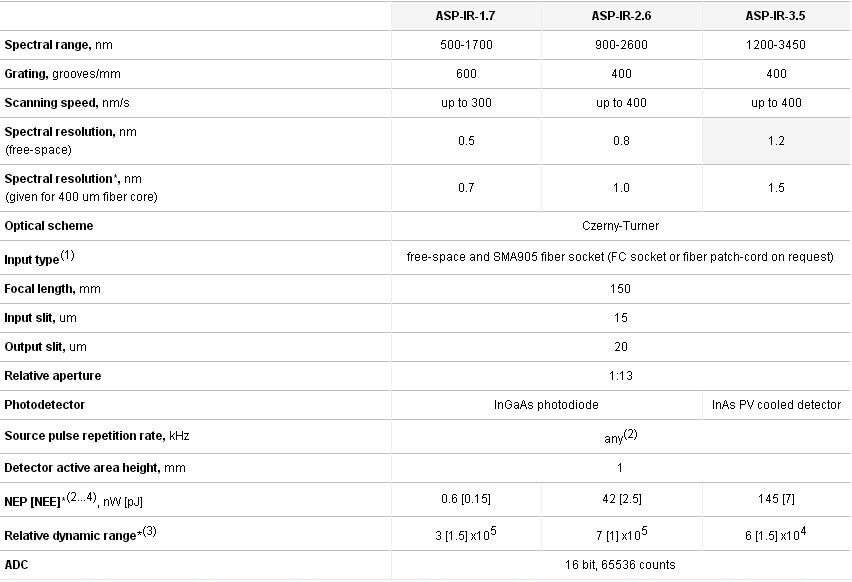

Specifications:
