PiLas Picosecond-Pulsed-Diode-Lasers

● Wavelengths range from 375 to 1060 nm
● Pulse width typically<60 ps
● Continuously tunable repetition rate from pulse-on-demand to 40 MHz
● Ultra low timing jitter (<3 ps rms)
● External laser triggering
● Alignment- and maintenance-free 24/7 operation

    Versatile, picosecond pulsed diode lasers designed for both industrial and scientific applications. With more than 10 different wavelengths to choose from and repetition rates from single-shot to 40 MHz pulse trains with internal or external trigger, you get an extremely flexible system to fit any application.

    With the PILAS DX range of pulsed diode lasers, you can have it your way.

    PILAS DX operates from pulse-on-demand up to 40 MHz in either master or slave mode and it can be easily triggered from an external source.

    The gain-switched operation of the semiconductor laser diode allows emission of optical pulses from 45 ps to 110 ps pulse width with ultra low timing jitter (<3 ps rms).

    Peak powers range from 60 mW to 400 mW in the wavelength range from 375 nm to 1060 nm, depending on the version you choose.

FEATURES

  • Wavelengths range from 375 to 1060 nm

  • Pulse width typically <60 ps

  • Continuously tunable repetition rate from pulse-on-demand to 40 MHz

  • Ultra low timing jitter (<3 ps rms)

  • External laser triggering

  • Alignment- and maintenance-free 24/7 operation

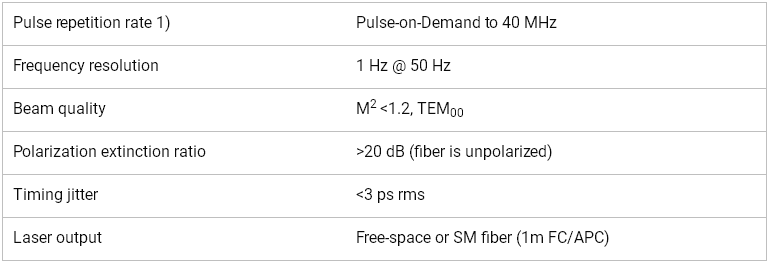

OPTICAL


1) Pulse-on-demand with external trigger. Internal trigger >25 Hz.

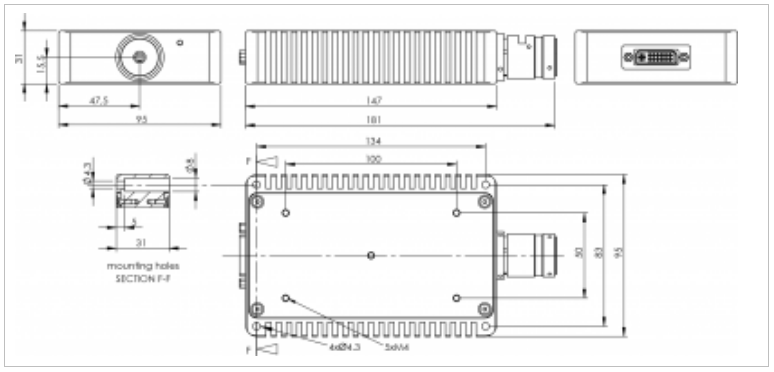

MECHANICAL/ELECTRICAL

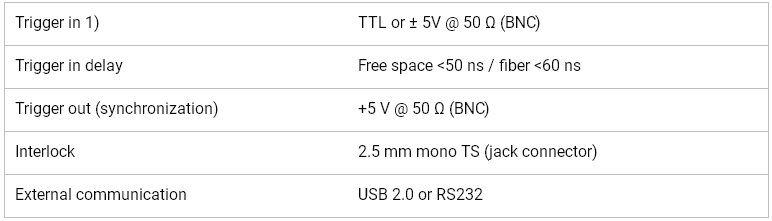

INTERFACE


1) Pulse-on-demand with external trigger. Internal trigger >25 Hz.

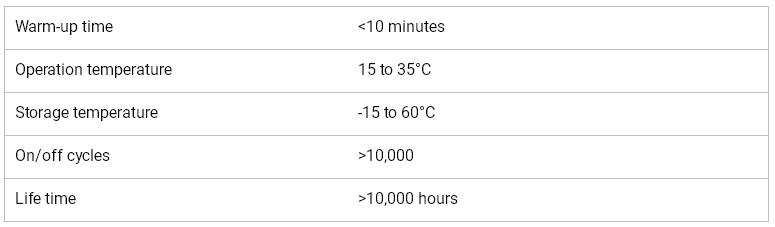

ENVIRONMENTAL


PiL---X

波长(nm)

公差(nm)

谱宽(nm)

脉宽 (ps) ¹


峰值功率(mW) ²

平均功(mW) ³

 PiL037X

  375

± 10

< 5

< 45

> 300

2

 PiL040X

  405

± 15

< 5

< 45

> 300

2

 PiL044X

  440

± 20

< 5

< 70

> 150

1.5

 PiL047X

  470

± 10

< 5

< 60

> 150

1.5

 PiL048X

  480

± 10

< 5

< 60

> 100

1

 PiL051X

  510

± 20

< 10

< 140

> 100

1

 PiL063X

  635

± 15

< 7

< 45

> 200

1.5

 PiL067X

  665

± 15

< 7

< 45

> 200

1.5

 PiL069X

  690

± 15

< 7

< 50

> 200

1.5

 PiL072X

  720

± 30

< 7

< 50

> 200

1.5

 PiL077X

  770

± 20

< 7

< 50

> 100

1

 PiL080X

  805

± 20

< 7

< 50

> 100

1

 PiL083X

  830

± 15

< 10

< 50

> 100

1

 PiL085X

  850

± 15

< 10

< 50

> 100

1

 PiL088X

  880

± 20

< 10

< 50

> 100

1

 PiL090X

  905

± 15

< 10

< 50

> 100

1

 PiL094X

  940

± 20

< 10

< 50

> 100

1

 PiL098X

  980

± 20

< 10

< 50

> 100

1

 PiL103X

  1030

± 20

< 15

< 60

> 100

1

 PiL106X

  1060

± 20

< 15

< 60

> 100

1

 PiL131X

  1310

± 20

< 15

< 35

> 50

0.5

 PiL155X

  1550

± 20

< 15

< 35

> 50

0.5

 PiL199X

  1990

± 50

< 50

< 80

> 100

1















 PiL084DFBX

  852

± 2

< 0.5

< 90

> 100

0.5

 PiL106DFBX

  1064

± 2

< 0.5

< 60

> 100

0.5

 PiL131DFBX

  1310 ⁴

± 20

< 0.5

< 30

> 50

0.5

 PiL155DFBX

  1550 ⁴

± 20

< 0.5

< 30

> 50

0.5
