FIND-R-SCOPE IR VIEWER 350-1550NM 2X KIT

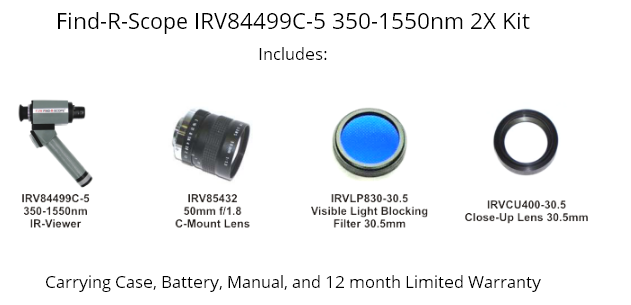

FIND-R-SCOPE Infrared Viewer -52X Kit, Includes the following items: | 84499C-5, Extended 350-1550nm Hand-Held Infrared Viewer | 85432, 50mm Objective Lens in lieu of standard 25mm lens | LP830-30.5, Visible Blocking Filter | CU400-30.5, Close-Up Lens


The FIND-R-SCOPE® is a self contained, hand-held infrared viewer operating in the near-infrared range of the spectrum. A high-resolution image converter tube and high voltage power supply combine with precision optics to permit a clear view of objects or images which could not otherwise be seen by the naked eye. The FIND-R-SCOPE® has a wide variety of applications in many different industries. The close-up lens allows for viewing within 4", with optional close-up lens, to align and verify fiber optic sources. IR filters increase the signal-to-noise ratio by blocking visible light when inspecting infrared emitting diodes, aligning laser systems, and examining art and other historical documents. Other applications include; low light surveillance, biological research, hot-spot observation, clinical medicine, and viewing in photographic darkrooms.
